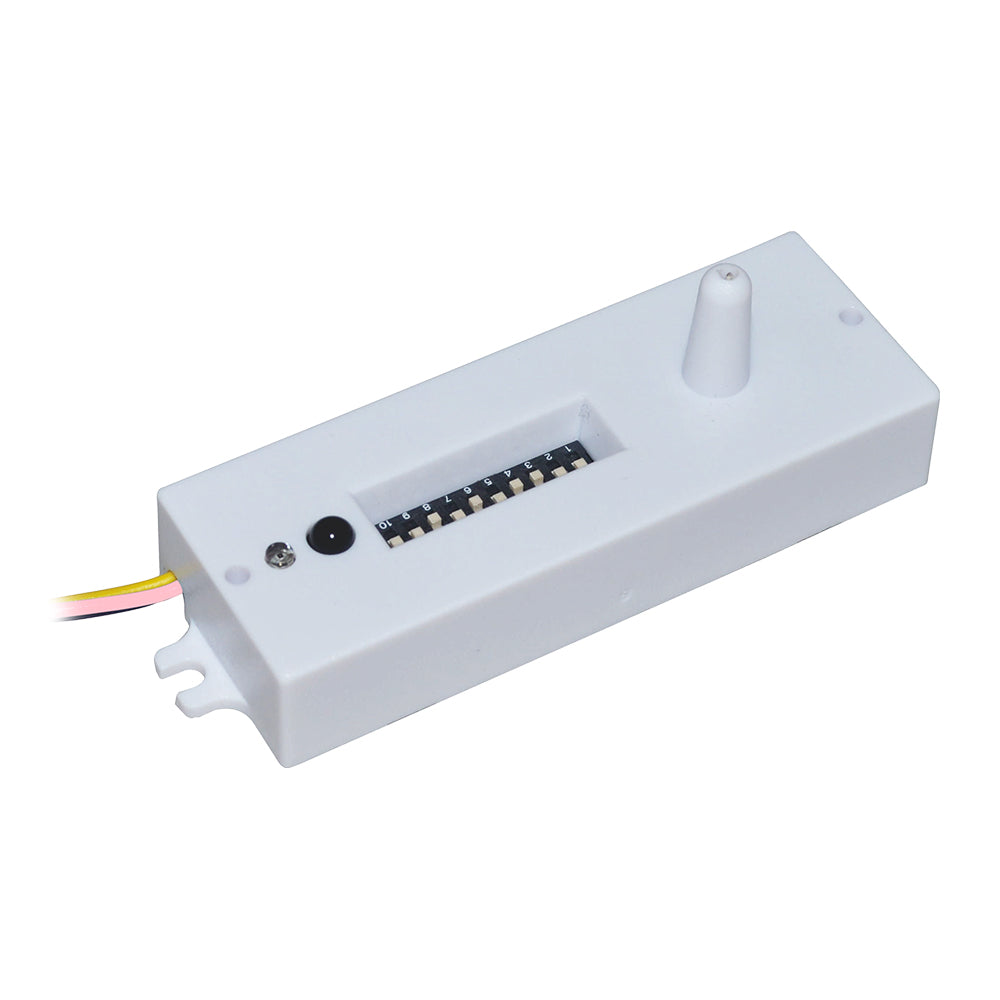

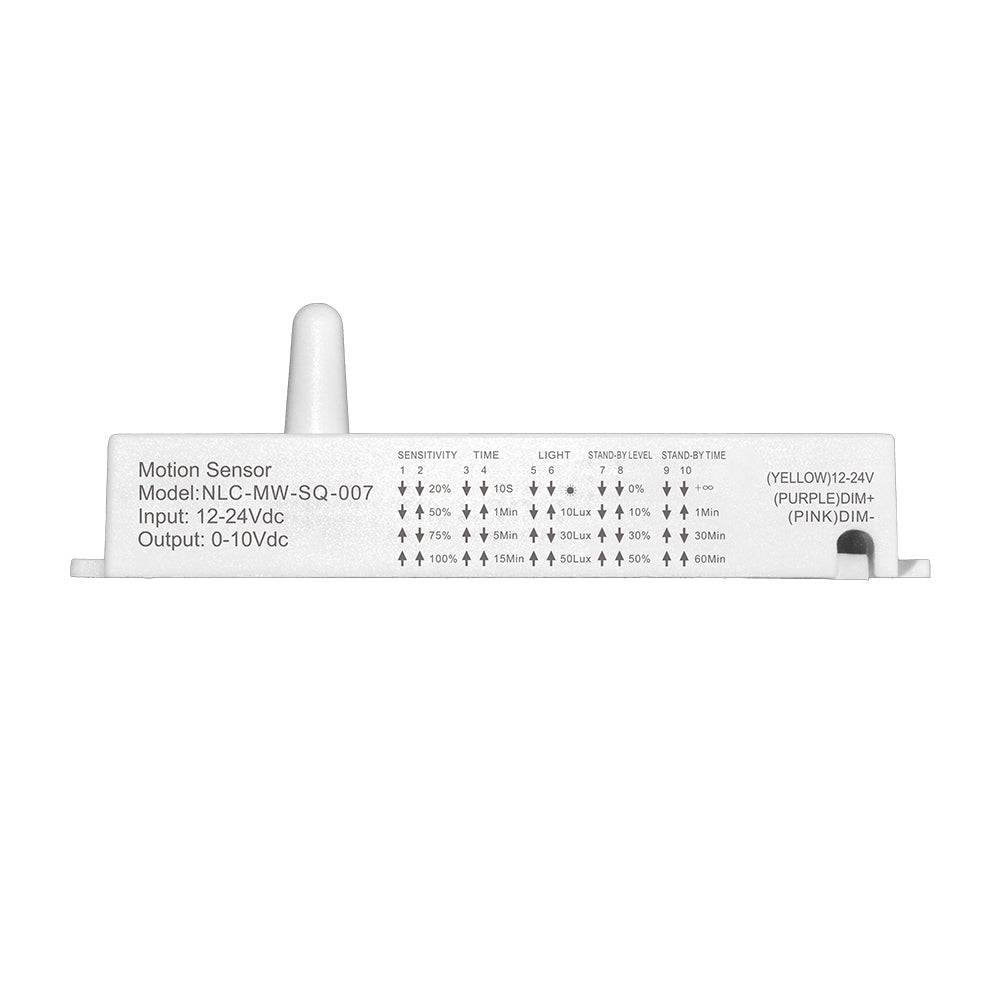

Low Voltage Bi-Level Motion Sensor
Item： NLC-MW-SQ-007
Power Supply: 12-24V DC ＞25mA
Microwave Frequency: 5.8 GHz ±75 MHz
Mounting Height: 12FT(4m) Max
Detection Radius: 50FT(15m) Max/360°
Dim Control Output: 0-10V MAX 25mA sinking current
Temperature: -40°F~+158°F(-40°C ~+70°C)
Package：
Package Size: 2x2x4 inch
Weight: 0.12 LBS (1 PCS)
Package Size: 21x11x9 inch
Weight: 12 LBS (100 PCS)
Download：
DATA/SPEC SHEET
