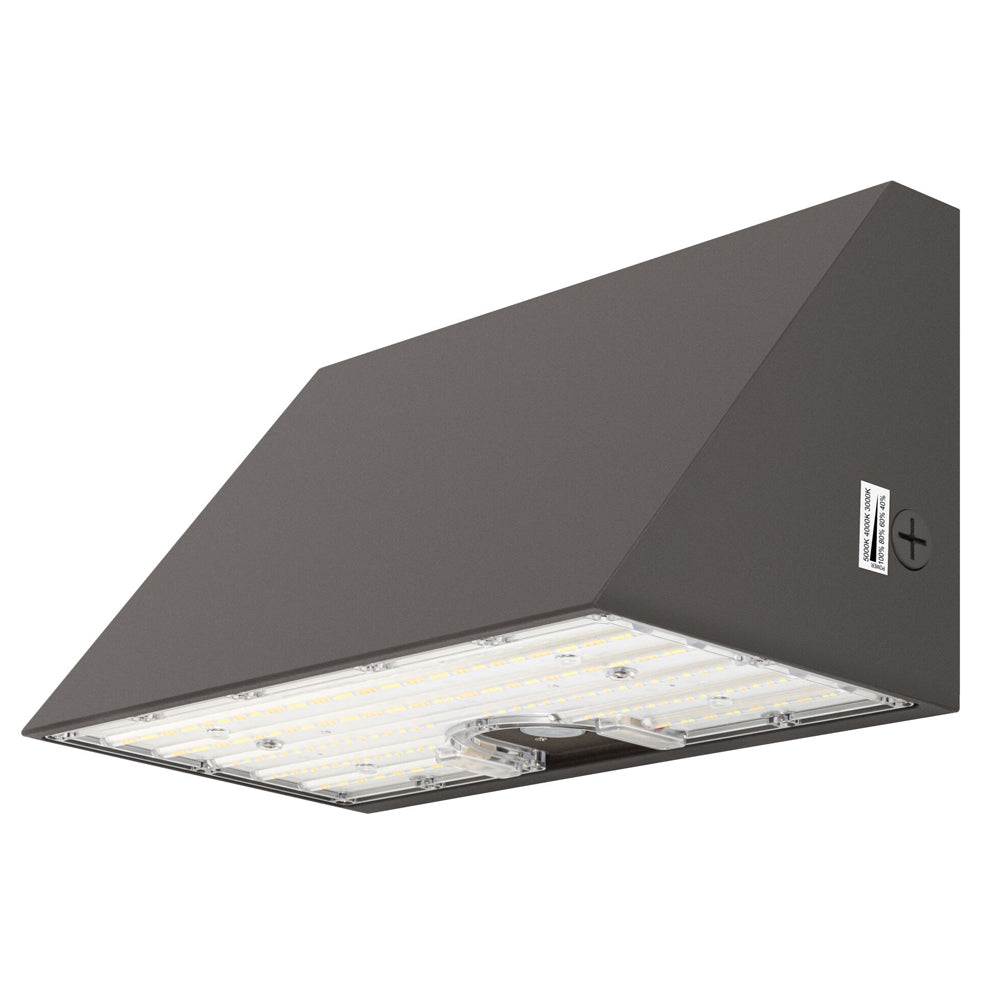

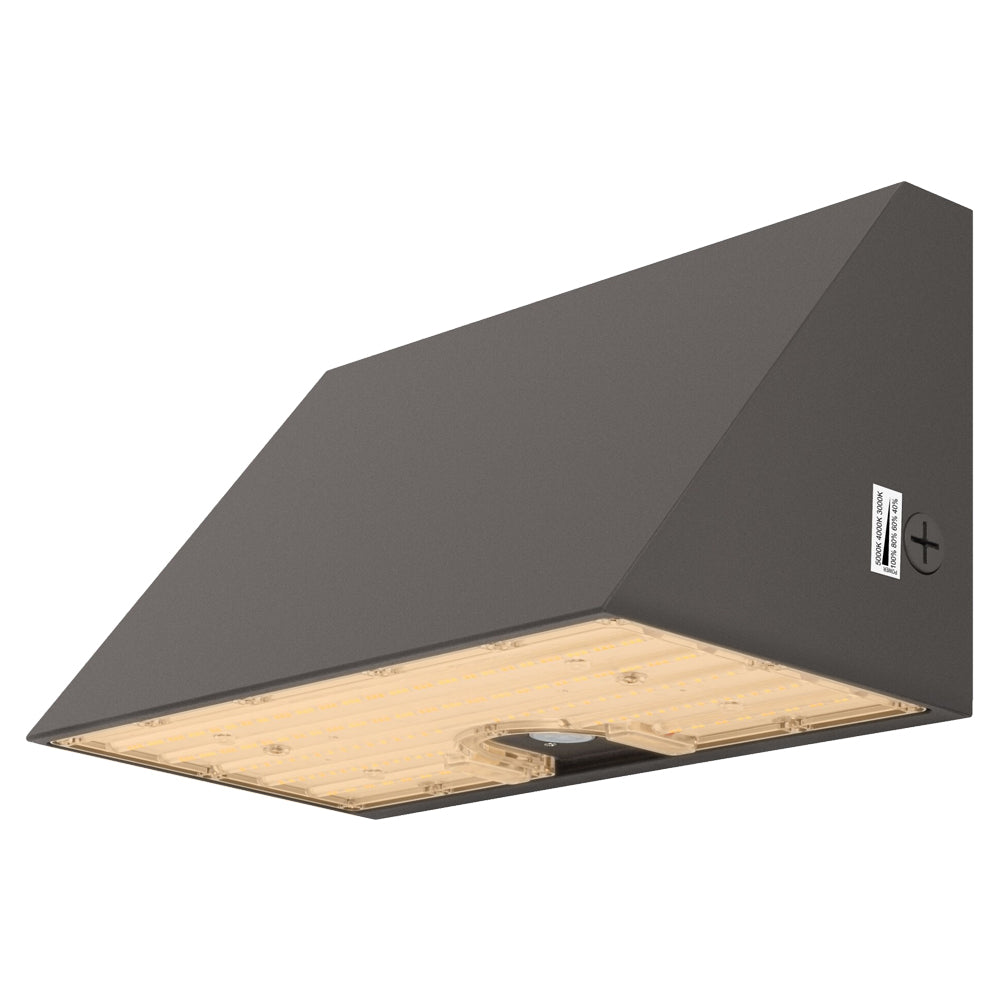

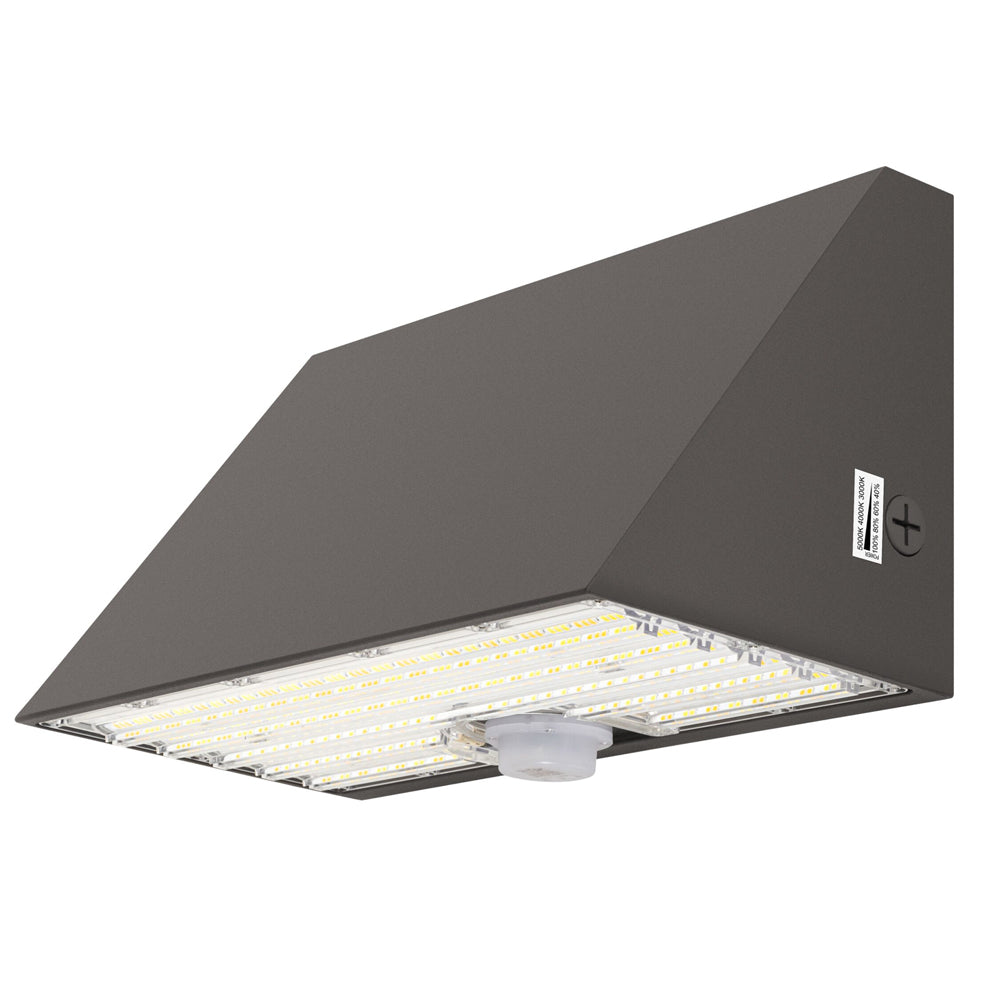

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.
**12Vdc Auxiliary Dimming**
**Photocell Standard**
Item: WSD-AFW6699132165W27-345K-D-T4-P
Power: 66W / 99W / 132W / 165W
Input: AC 120-277V
CCT: 3000K/ 4000K / 5000K
Output: 11435 LM / 16481 LM / 21269 LM / 25339 LM
Type of lighting： T3 / T4 / T5
Factory Default Parameters:
Power: 165W
CCT：4000K
Type of lighting: T4
Driver: KERHAM
Package:
Packing size: 17x10x10 inch
Weight： 12 LBS (1 PCS）
Pallet size: 42X48X60inch
Qty: 72pcs
Total Weight: 890 lbs
Download：
DATA/SPEC SHEET
IES FILES
INSTALLATION GUIDE
