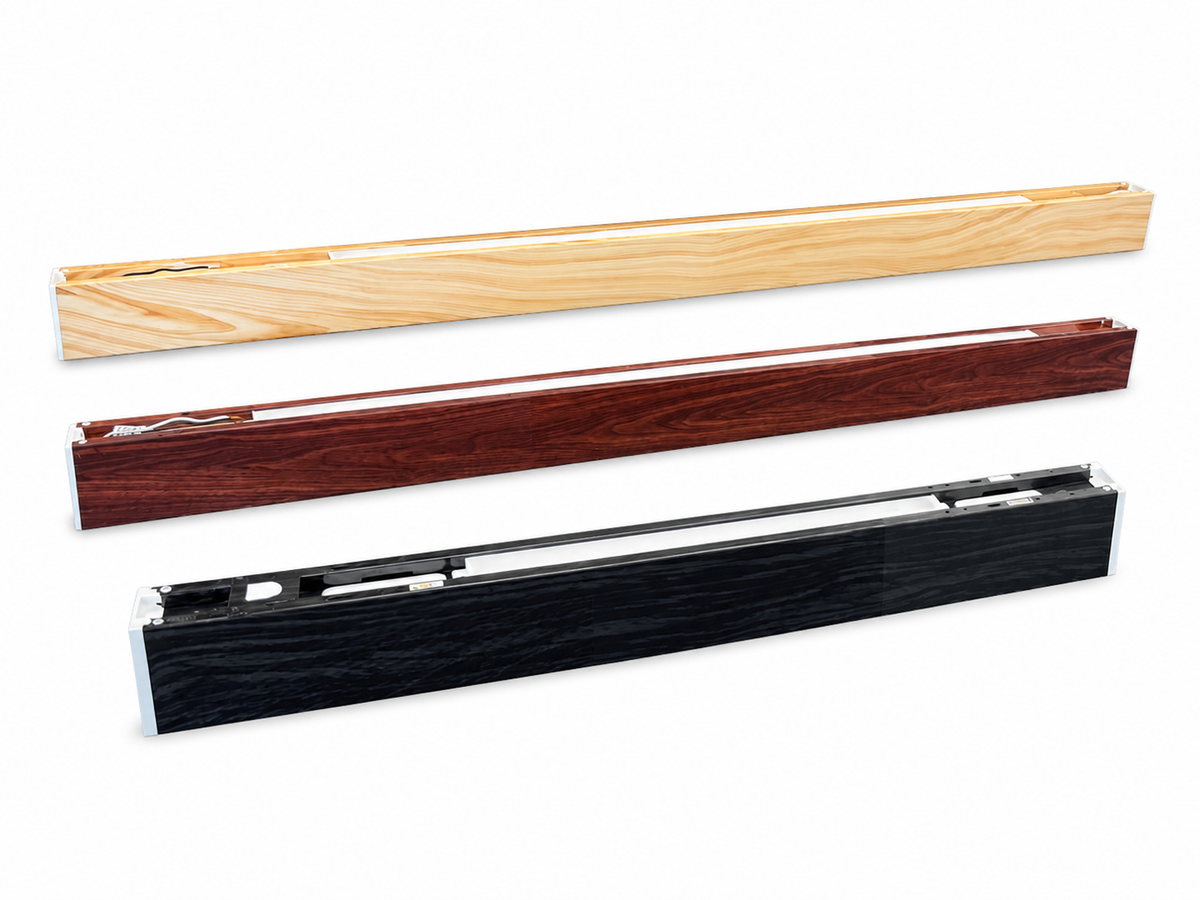

The Architecture 5CCT Selectable LED Linear Light Series can be widely used for indoor lighting (damp locations). Excellent for hospitals, schools, office, shops, restaurants, storage rooms, supermarkets, etc.
**12Vdc Auxiliary**
Item: WSD-OL2FT10121620W27-5CCT-W-G2
Power: 10W / 12W / 16W / 20W
Input: AC 120-277V
CCT:2700K / 3000K / 3500K / 4000K / 5000K
Output: 1100 LM / 1400 LM / 1800 LM / 2300 LM
Factory Default Parameters:
Power: 20W
CCT:4000K
Direct-Indirect Flux Ratio Adjustable:
Direct: 100% 70% 50%
Indirect: 0% 30% 50%
Package:
Package Size: 26x3x4 inch
Weight: 4 LBS (1 PCS)
Package Size: 26x8x8 inch
Weight: 24 LBS (6 PCS)
Pallet Size:
Qty:
Total Weight:
Download:
DATA/SPEC SHEET
IES FILES
INSTALLATION GUIDE
