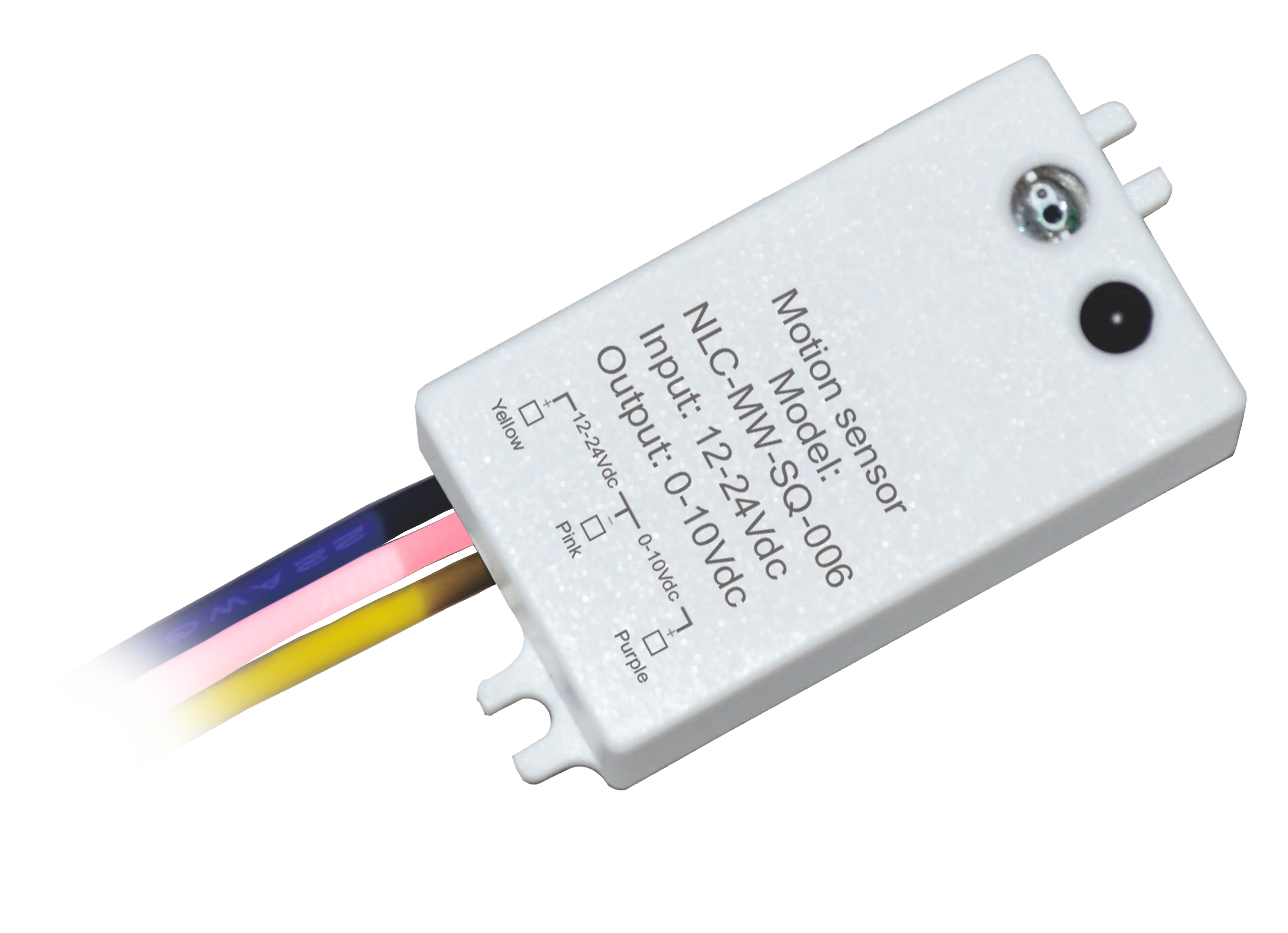

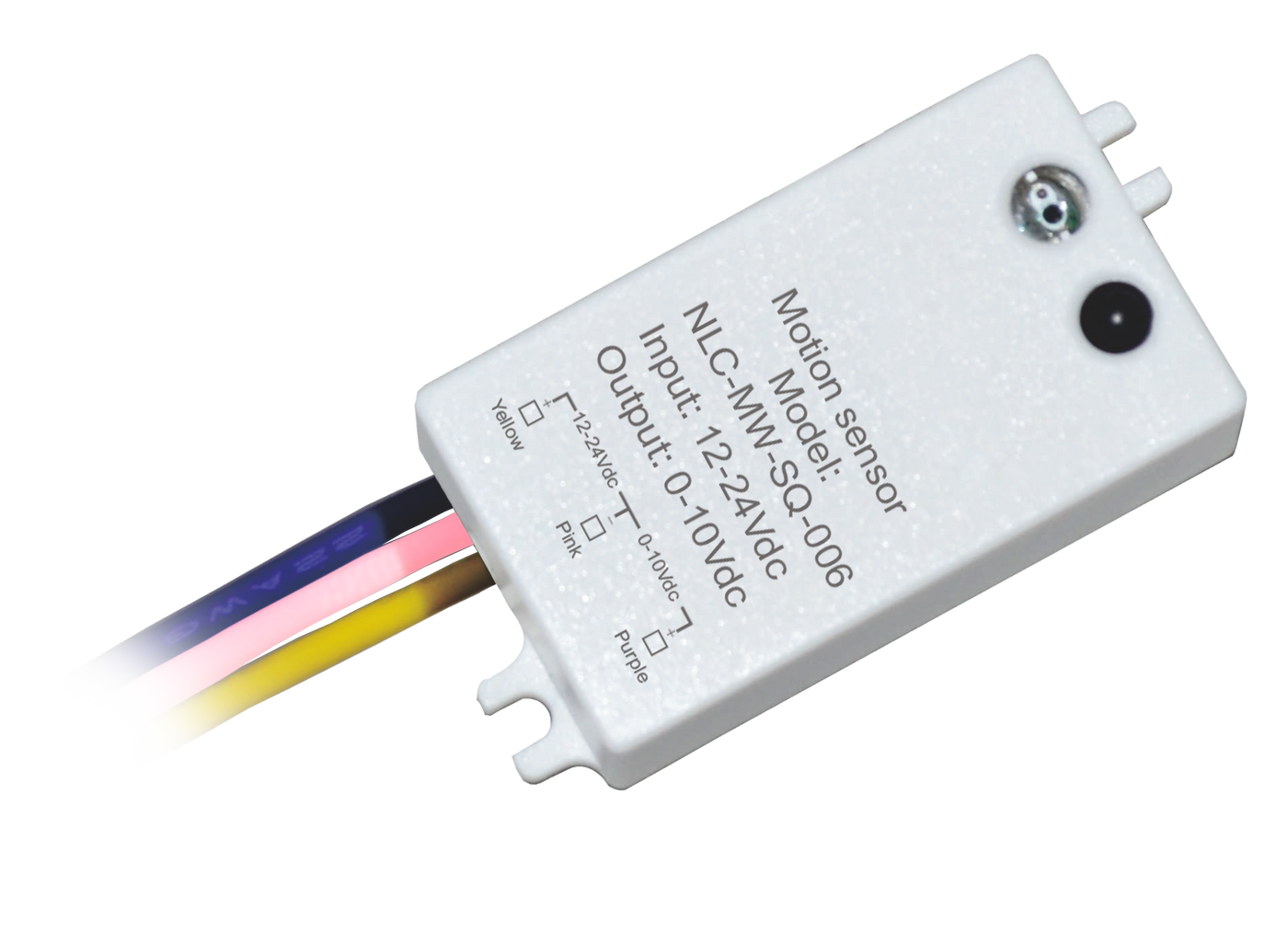

Item: NLC-MW-SQ-006
Power Supply: DC 12-24V
HF System: 5.8 GHz ±75 MHz
Dim Control Output: 0-1 OV max. 25mA sinking current
Detection Radius/Angle: Max 26ft.(8m) /360°
Mounting Height: Max 40ft
Remote Range：50ft (15m) Indoor, NO backlight
Humidity: Max. 95% RH
Temperature: -40°F- +158°F (-40°C- +70°C)
Download:
DATA/SPEC SHEET
