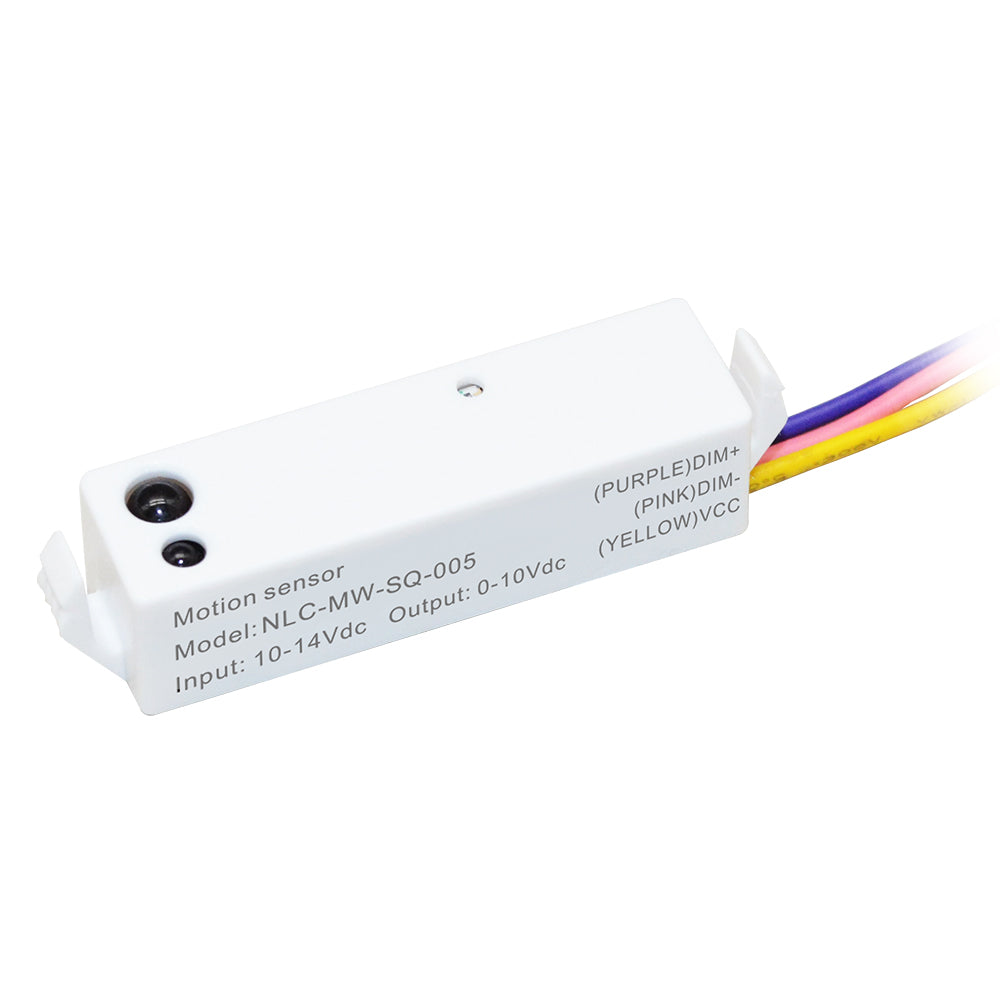

Bi-Level Motion Sensor DC12V Supply
Item：NLC-MW-SQ-005
Power Supply: 10-14V DC ＞50mA
Microwave Frequency: 5.8 GHz ±75 MHz
Mounting Height: 12FT(4m) Max
Detection Radius: 12FT(4m) Max/360°
Dim Control Output: 0-10V MAX 25mA sinking current
Temperature: -40°F~+158°F(-40°C ~+70°C)
Package：
Package Size: 1.18x1.18x2.36 inch
Weight: 0.04 LBS (1 PCS)
Package Size: 12.8x6.69x10.43 inch
Weight: 11 LBS (200 PCS)
Download：
DATA/SPEC SHEET
